Introduction

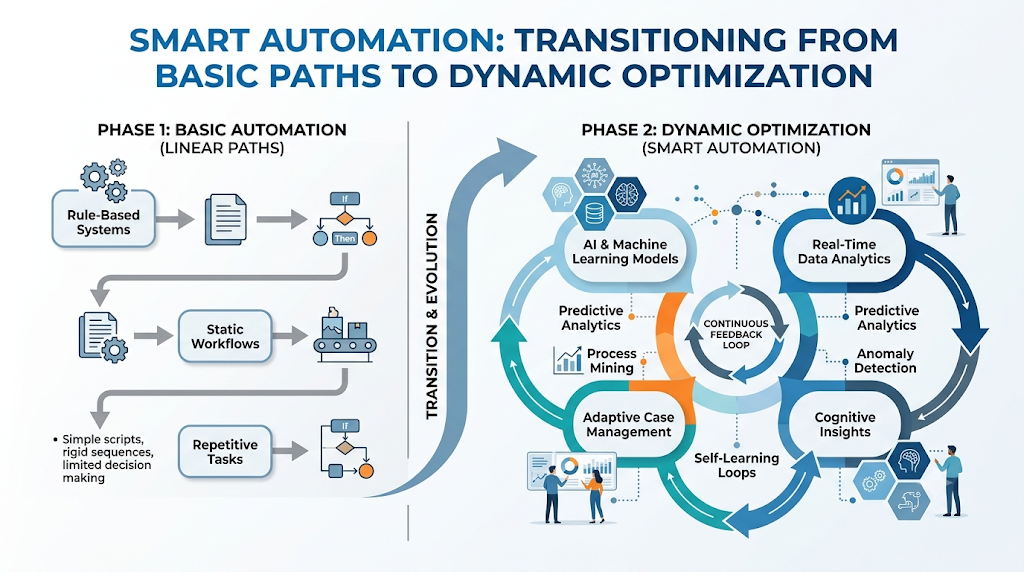

Modern industrial operations are undergoing a quiet revolution. Gone are the days when robotic hardware simply repeated rigid, pre-programmed coordinates in an isolated cage. Today, automated facilities demand high-speed adaptability, ultra-precise adjustments, and safe human-machine collaboration. To survive in this fast-paced landscape, machinery must operate with unprecedented intelligence and efficiency. Managing these kinetic properties directly impacts a facility’s bottom line by maximizing throughput and eliminating unplanned maintenance. For organizations seeking to bridge the gap between high-level software and rugged physical execution, platforms like RobotsOps.com provide crucial insight into turning theoretical robotics engineering into reliable everyday performance.

What Is Robot Dynamics?

In industrial automation, robot dynamics is the branch of engineering that analyzes the relationship between the forces acting on a machine and the resulting motion it produces. Instead of just looking at where a component is located, dynamics investigates why it moves, factoring in the electrical energy supplied to the motors and the physical weight of the parts being handled.

The Critical Difference: Kinematics vs. Dynamics

A common point of confusion for teams deploying automation is the distinction between robot kinematics and dynamics. Understanding the difference is crucial for troubleshooting deployment errors:

• Robot Kinematics: This focuses entirely on the geometry of motion. It calculates positions, angles, and velocities without considering the forces causing them. It answers the question: “What joint angles are required to place the gripper at this specific point in space?”
• Robot Dynamics: This introduces mass, weight, inertia, and forces. It answers the question: “How much electrical current and motor torque do I need to accelerate a 15 kg payload along that path without shaking the machine apart?”

Why Dynamics Matters in Robotic Systems

Without dynamic modeling, a robotic system operates completely blind to its own weight and environment. If a controller assumes an arm is weightless, it will supply the same motor signals whether the gripper is empty or holding a heavy casting. This results in lagging paths, excessive settling times, and extreme mechanical strain on the gearboxes.

Why Robot Dynamics Matters in Operations

When deploying automated systems on a live production floor, theoretical math quickly meets physical limits. Properly accounting for dynamic forces directly influences five key operational areas:

Motion Accuracy

When an industrial arm accelerates quickly, inertia wants to keep the arm moving in its original direction. If the control algorithm does not actively calculate this resistance, the robot will overshoot its target path. Dynamic awareness ensures that a nozzle or welding tip stays precisely on track, even at maximum speed.

Safety

Collaborative robots, or cobots, work alongside human operators without physical safety fencing. These machines rely heavily on real-time force tracking. By constantly calculating the expected torque needed to move its own structure, the cobot can instantly detect a tiny spike in resistance—signaling a human collision—and halt within milliseconds.

Productivity

The ultimate metric on any assembly line is throughput. Optimizing for acceleration profiles rather than just top speed allows automated systems to settle into position faster, shaving valuable fractions of a second off every single cycle.

Energy Efficiency

Accelerating a massive mechanical link consumes a significant amount of electricity. By calculating smooth, natural trajectories that work with gravity rather than fighting it, plants can drastically reduce their peak electrical draw and lower monthly utility costs.

Reliability

Repeatedly stopping and starting a multi-ton mechanism creates massive reverse forces inside the gearboxes. Managing these dynamic spikes stops premature tooth wear, avoids blown motor drives, and protects your capital investments over decades of continuous use.

Core Concepts of Robot Dynamics

To master robotic automation, operational teams must understand the foundational physical factors that dictate how a machine behaves under load.

Forces and Torque

Linear forces cause straight-line movement, while torque is the rotational force applied by a motor to turn a joint. Every movement your system executes is a direct battle between internal motor torque and external resistance.

Mass and Inertia

Mass represents a component’s resistance to linear acceleration. Inertia is its resistance to rotational changes. A long robotic arm fully extended has a much higher moment of inertia than an arm tucked close to its center base, meaning the base motor must work significantly harder to turn it.

Velocity and Acceleration

Velocity is the speed of movement in a specific direction, while acceleration is the rate of change of that speed. High acceleration demands rapid spikes in torque, which generates significant heat in the motor windings.

Momentum

Momentum is the product of an object’s mass and velocity. In high-speed packaging or sorting operations, stopping a fast-moving arm creates massive kinetic energy that must be absorbed safely by the structural base.

Friction and Resistance

No mechanical system is perfectly efficient. Bearings, seals, and gearboxes introduce viscous and static friction. Additionally, internal wiring harnesses and protective sleeving add mechanical resistance that changes based on the arm’s temperature and physical position.

Load Handling

The moment an end-of-arm tool picks up a workpiece, the entire physical profile of the machine changes. The system must instantly adapt its feedback loops to account for the new center of gravity and the added weight.

Robot Dynamics and Motion Control

Turning physical formulas into smooth operational movement requires tight integration with advanced software control systems.

+--------------------------------------------------------+
|                  Trajectory Generation                 |
|       Calculates optimal path, speed, and timing       |
+----------------------------+---------------------------+
                             |
                             v
+--------------------------------------------------------+
|                     Motion Planning                    |
|          Translates path into joint commands           |
+----------------------------+---------------------------+
                             |
                             v
+--------------------------------------------------------+
|                Feedback Control System                 |
|    Monitors real-time encoder data & adjusts torque    |
+----------------------------+---------------------------+
                             |
                             v
+--------------------------------------------------------+
|                  Stability Management                  |
|          Dampens vibrations and keeps balance          |
+--------------------------------------------------------+

Trajectory Generation and Motion Planning

Before a machine moves, the controller calculates a trajectory—a detailed timetable showing exactly where each joint should be every millisecond. Advanced motion planning doesn’t just create a straight line; it rounds off sharp corners to keep acceleration smooth, preventing violent mechanical jerks.

Feedback Control Systems

Robots use closed-loop control architectures. High-resolution encoders measure the exact position of the joint hundreds of times per second. If the joint lags behind the planned path due to an unexpected payload shift, the controller instantly increases the current to the motor to compensate.

Stability Management

Fast movements can induce structural resonance, causing the end of the robot to vibrate like a tuning fork. Modern control systems use dynamic dampening algorithms to cancel out these frequencies, allowing the tool to stop and stabilize instantly without waiting for physical oscillations to settle.

Types of Robots and Their Dynamic Behavior

Different mechanical form factors face entirely distinct dynamic challenges on the shop floor.

Industrial Robotic Arms

These multi-jointed structures experience radically changing moments of inertia. Because their geometry shifts constantly as they reach across a workspace, the torque required to move joint 1 depends heavily on whether joints 2 and 3 are extended or retracted.

Mobile and Autonomous Robots

Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) operate in two-dimensional planes. Their dynamic challenges revolve around traction, center-of-gravity shifts during heavy braking, and avoiding tipping when carrying tall, top-heavy pallets over uneven warehouse floors.

Collaborative Robots (Cobots)

Cobots feature low-inertia structural links, lightweight motors, and integrated torque sensors at every joint. Their control loops are tuned for extreme sensitivity to external forces, prioritizing force limitation over raw operating speed to ensure human safety.

Service Robots

Operating in public environments like hospitals or hotels, service robots must manage dynamics on highly unpredictable surfaces, such as transitioning smoothly from hard tile floors to thick, high-friction carpeting without veering off course.

Operational Applications of Robot Dynamics

Applying dynamic optimization across various industries unlocks massive improvements in efficiency and throughput.

Industry	Core Activity	Primary Dynamic Challenge	Operational Benefit
Manufacturing	High-speed spot welding & automotive assembly	Heavy, fluctuating payloads and rapid directional shifts	Perfect weld consistency, zero frame warping, and extended asset lifespans
Warehousing	Palletizing and depalletizing mixed consumer goods	Constant center-of-gravity shifts as boxes stack higher	Higher stacking speeds without dropping products or tipping vehicles
Logistics	Parcel sorting and high-velocity pick-and-place	High acceleration and extreme mechanical jerk control	Fractions of a second saved per pick, boosting total facility output
Healthcare	Surgical assistance and delicate fluid handling	Micro-vibration elimination and absolute force precision	Tremendous placement accuracy and gentle tissue interaction
Agriculture	Autonomous harvesting and field weeding	Traveling over soft, slipping mud while manipulating delicate crops	Prevents produce bruising and maintains straight rows on uneven hillsides
Inspection	Structural checking of pipelines and infrastructure	High winds, tracking rust, and operating on vertical surfaces	Steady sensor data collection and steady probe contact pressure

Robot Dynamics in Industrial Automation

In high-volume production environments, dynamic performance directly governs the structural design and rhythm of the entire facility.

Production Lines and Material Handling

On a synchronized production line, a single sluggish machine slows down the entire facility. Optimizing joint dynamics ensures that heavy components are picked, moved, and placed in perfect harmony with upstream conveyors, preventing material pile-ups.

Assembly Operations

Tasks like pressing a bearing into a housing or snapping plastic components together require precise force profiles. By monitoring the relationship between insertion speed and motor torque, the system can instantly detect if a component is misaligned or out of tolerance before damaging the assembly.

Quality Control Systems

Automated inspection cells often swing heavy high-definition cameras or laser scanners around a part. Dynamic control ensures the scanner moves at an absolutely constant speed without microscopic shaking, preventing blurry data images and false rejects.

Key Metrics Used to Evaluate Robot Performance

To continuously optimize your robotic systems, operations teams must track several key performance indicators (KPIs) tied to physical motion.

• Accuracy: The ability of a machine to move to an exact commanded position in space. Low accuracy points to poor calibration or a miscalculated payload profile.
• Repeatability: How closely a machine returns to the exact same spot across thousands of consecutive cycles. High repeatability with poor accuracy usually signals a steady mechanical offset.
• Speed: The maximum linear or angular velocity of the system, typically measured in millimeters per second or degrees per second.
• Cycle Time: The total time required to complete a full sequence of operations (e.g., pick, move, place, and return). This is the master metric for factory floor productivity.
• Payload Capacity: The maximum weight a robot can manipulate safely at full speed. Operating right at or slightly above this limit causes thermal overloading of the motors.
• Energy Consumption: The total electrical power consumed by the system, measured in kilowatt-hours. Tracking this helps spot binding bearings or failing gearboxes early.

Common Challenges in Robot Dynamics

Operating heavy mechanical machinery under tight cycle times eventually runs into real-world physical limitations.

Mechanical Wear

Over time, gear teeth wear down, creating tiny gaps known as backlash. When a joint reverses direction, this gap causes a brief moment of unguided movement, introducing positioning errors and harsh vibrations.

Vibrations and Dynamic Instability

If a robot’s structural frame isn’t rigid enough, rapid deceleration will cause the entire arm to shake. If the frequency of this shaking matches the natural resonance of the factory floor, it can loosen mounting bolts and damage adjacent equipment.

Environmental Influences

Industrial environments change throughout the day. Cold morning temperatures make gearbox grease thick and viscous, increasing initial friction. As the factory warms up, the grease thins out, completely changing the joint’s friction profile.

Complex Motion Coordination

When an arm must follow a complex curved path while mounted to a moving gantry or linear track, calculating the combined dynamic interactions of all axes simultaneously requires immense computational processing power.

Best Practices for Optimizing Robot Operations

Maximizing the ROI of your automated systems requires a proactive approach to managing physical wear and software configuration.

Proper Calibration

Never rely solely on factory default settings. Regularly calibrate your automated tools using laser trackers or specialized software routines to account for real-world mounting angles and structural deflections.

Routine Maintenance

Establish a strict schedule for checking gearbox oil levels, inspecting timing belts for stretch, and blowing dust out of motor cooling fans. Clean, well-lubricated components exhibit predictable friction levels, keeping control loops stable.

Load Balancing

Distribute your payloads symmetrically whenever possible. Mounting a heavy gripper far off-center creates massive torsional forces that twist the wrist joints, accelerating mechanical wear and degrading precision.

Sensor Integration

Equip high-precision workcells with external force-torque sensors and secondary encoders. This extra data layer gives the controller immediate visibility into external forces, allowing it to adapt to shifting conditions on the fly.

Performance Monitoring

Continuously log motor currents, operating temperatures, and error tracking metrics. A gradual increase in the electrical current needed to execute a standard movement is an early warning sign of a binding mechanical component.

Real-World Examples and Use Cases

Seeing dynamic optimization in action highlights its immense value across modern industries.

Smart Factories

In leading automotive assembly plants, heavy-duty material handlers manipulate entire car frames. Advanced dynamic software updates the torque profiles in real time as parts are added, keeping movements smooth and preventing structural frame distortion.

Automated Warehouses

Modern logistics hubs utilize high-velocity top-loading sorting robots. These systems utilize advanced acceleration profiles to sprint across storage grids, braking hard at the exact millimeter needed to retrieve a bin without causing structural sway.

Medical Robotics

In surgical suites, robotic systems scale down a surgeon’s hand movements, filtering out natural hand tremors. The software manages micro-dynamics to ensure that a cutting tool never exerts a force beyond predefined, safe physiological thresholds.

Emerging Trends in Robotics Operations

The world of industrial automation is evolving rapidly, driven by faster computing power and smarter algorithmic architectures.

AI-Powered Robotics

Machine learning models are now analyzing raw motor current and encoder data across thousands of operating hours. These systems learn to predict complex, non-linear friction patterns that are too difficult to model with traditional physics formulas.

Digital Twins

Engineers can now build highly accurate digital replicas of their entire production lines. By running virtual simulations that accurately mimic real-world mass and inertia, teams can stress-test new paths and verify cycle times before turning on a single physical machine.

Predictive Maintenance

By tracking subtle anomalies in dynamic feedback loops, cloud monitoring platforms can detect a failing gearbox weeks before it breaks down, allowing maintenance teams to schedule a replacement during planned weekend shutdowns.

Career Opportunities in Robotics and Operations

As companies accelerate their automation deployments, demand for professionals who understand physical machine behavior is skyrocketing.

• Robotics Engineer: Focuses on designing, programming, and deploying robotic systems, ensuring mechanical structures can handle operational forces safely.
• Automation Engineer: Specializes in integrating robots into broader factory ecosystems, connecting conveyor lines, sensors, and safety infrastructure.
• Controls Engineer: The mathematical mind behind the system, designing the feedback algorithms, tuning PID loops, and ensuring smooth motor performance.
• Operations Specialist: Focuses on high-level productivity metrics, monitoring cycle times, maximizing asset utilization, and managing maintenance schedules.

Common Misconceptions About Robot Dynamics

Let’s clear up a few pervasive myths that frequently mislead teams during their first major automation deployment:

Myth: If a robot is rated for a 10 kg payload, it can handle 10 kg in any position or speed.

Reality: Payload ratings are calculated with the arm tucked close to its body. Fully extending an arm holding maximum payload creates massive leverage, overloading the base joints during rapid acceleration.

Myth: Software can completely fix a shaky or poorly built mechanical frame.

Reality: While software filters can dampen minor vibrations, they cannot overcome a weak, flexing foundation. True operational stability requires a rigid physical base paired with smart control code.

Myth: Robots always maintain perfect accuracy throughout their operational lifespan.

Reality: Bearings wear down, belts stretch, and mounting bolts settle over time. Without regular physical calibration and maintenance, positioning accuracy naturally degrades.

FAQ Section

1. What is the main difference between robot kinematics and robot dynamics?

   Kinematics looks purely at the geometry of motion, calculating positions and joint angles without considering forces. Dynamics factors in mass, inertia, weight, and friction, calculating the actual motor forces and torques required to produce that motion.

2. Why does payload center of gravity matter so much?

   An off-center payload acts as a long lever arm against the robot’s wrist joints. This uneven distribution creates high twisting forces, forcing the motors to work harder, causing path errors, and accelerating gearbox wear.

3. How does friction affect industrial robotic performance?

   Friction introduces resistance within gearboxes, bearings, and protective cable tracks. If friction isn’t modeled correctly in the software, it causes lag, increases energy consumption, and leads to positioning errors during slow, precise movements.

4. What happens if a robot exceeds its dynamic acceleration limits?

   Exceeding acceleration limits forces the motor drives to draw excessive electrical current, which can trigger an emergency overcurrent fault. It also induces violent mechanical vibrations that degrade path accuracy and strain structural joints.

5. Can temperature changes affect how a robot moves?

   Yes, industrial environments experience thermal shifts. Cold temperatures increase the viscosity of gearbox lubricants, creating higher initial resistance, while high operating heat thins the grease and expands metal linkages slightly, shifting the accuracy profile.

6. What is structural resonance in robotics engineering?

   Structural resonance occurs when the rapid stopping and starting frequencies of a robot match the natural vibration frequency of its mechanical frame or the factory floor. This amplifies shaking, ruins precision, and can loosen mounting hardware.

7. How do collaborative robots use dynamics to stay safe around humans?

   Cobots continuously calculate exactly how much torque is required to move their own weight along a path. If an integrated sensor detects even a tiny amount of additional force—indicating contact with a person—the system instantly halts execution.

8. What is backlash, and how does it damage accuracy?

   Backlash is the tiny amount of play or gap between interlocking gear teeth caused by mechanical wear over time. When a joint reverses its direction of travel, this gap causes a momentary pause in actual movement, degrading repeatability.

9. How do digital twins help optimize robot dynamics?

   Digital twins allow engineers to simulate complex paths, cycle times, and physical forces in a virtual sandbox. This allows operations teams to identify collision risks, path overshoots, and cycle bottlenecks before deploying code to physical factory hardware.

10. Why should operations teams monitor motor current data?

    Motor current is a direct indicator of mechanical workload. A gradual increase in the current required to lift a standard part tells maintenance teams that a bearing is beginning to bind, a gear is failing, or a component requires immediate lubrication.

Final Summary

Mastering robot dynamics for operations is the ultimate key to unlocking the true potential of modern factory automation. By looking past simple spatial positions and managing the underlying physical forces, speeds, and loads, industrial facilities can achieve incredible gains in throughput while safeguarding their capital equipment. As technologies like AI analysis, predictive asset maintenance, and cloud-connected digital twins continue to mature, the connection between physical mechanical performance and software control will become even tighter. Staying ahead of these changes requires a commitment to continuous engineering education and proactive operational best practices.
