1. Introduction & Overview

What is URDF (Unified Robot Description Format)?

The Unified Robot Description Format (URDF) is an XML-based format used to describe the physical configuration of robots in Robot Operating System (ROS) and RobotOps pipelines. URDF defines a robot’s geometry, joints, sensors, actuators, and kinematics, allowing simulation tools and controllers to interpret robot models consistently.

It serves as the single source of truth for a robot’s structure, bridging the gap between design, simulation, and deployment in RobotOps workflows.

History or Background

• Introduced in ROS (Robot Operating System) around 2009, URDF was designed to standardize how robots are described across different robotics platforms.
• Before URDF, each simulator or control framework had its own proprietary formats, leading to incompatibility.
• Over time, URDF evolved as the de facto standard for robot modeling in the ROS ecosystem.

Why is it Relevant in RobotOps?

In RobotOps (the DevOps-inspired methodology for robotics), URDF plays a critical role by:

• Providing consistent robot definitions across CI/CD pipelines.
• Enabling simulation-first testing before deploying changes to real robots.
• Supporting automation and reproducibility in cloud-based robotic environments.
• Serving as an integration layer between CAD models, simulators, and robot controllers.

---

2. Core Concepts & Terminology

Key Terms and Definitions

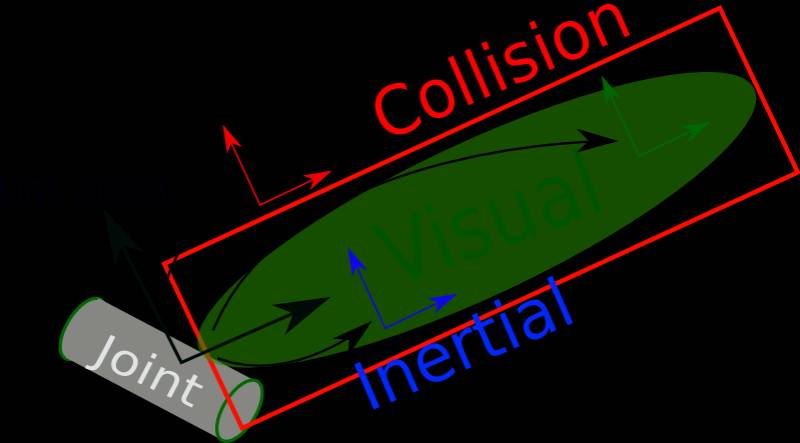

• Link: A rigid body element of a robot (e.g., base, arm, wheel).
• Joint: A movable connection between two links (e.g., hinge, slider).
• Sensor Plugins: Definitions for LIDAR, cameras, IMUs, etc.
• Transmission: Specifies how actuators drive joints.
• Gazebo / RViz: Common simulators and visualization tools that consume URDF.
• xacro: An XML macro language used to simplify URDF creation.

How It Fits into the RobotOps Lifecycle

URDF maps directly to different stages of the RobotOps pipeline:

RobotOps Stage	Role of URDF
Design	Define robot CAD → convert to URDF
Simulation	Load URDF into Gazebo / RViz for testing
CI/CD	Automated validation of URDF files, testing physics in CI
Deployment	Consistent description ensures real robot matches simulation
Monitoring	URDF defines sensor positions for telemetry

---

3. Architecture & How It Works

Components & Workflow

URDF is structured into hierarchical components:

1. Root Link → starting point of the robot.
2. Child Links → connected via joints.
3. Sensors/Actuators → defined as plugins or transmissions.
4. Visualization → meshes, colors, and collision geometries.
5. Simulation & Control → consumed by simulators and controllers.

Internal Workflow

1. CAD model → Export mesh (STL/DAE).
2. Define URDF → XML file describing links/joints.
3. Run validation → URDF checkers (linting).
4. Load in RViz/Gazebo → for simulation.
5. Integrate in RobotOps pipeline → CI/CD ensures consistency.

Architecture Diagram (Textual Representation)

[ CAD Model ] --> [ URDF File (links, joints, sensors) ] --> [ RobotOps CI/CD Pipeline ]
        |                                                        |
        v                                                        v
   [ Meshes (.stl/.dae) ]                            [ Simulators: Gazebo, RViz ]
                                                     [ Controllers: ROS Control ]

Integration Points with CI/CD or Cloud Tools

• GitHub Actions / GitLab CI → Validate URDF before merge.
• Dockerized URDF tools → Ensure reproducibility.
• Cloud Robotics (AWS RoboMaker, Google Cloud Robotics) → Deploy URDF-defined robots in simulation fleets.
• Automated Testing → Use URDF to test kinematics, collisions, and control logic before deploying to real robots.

---

4. Installation & Getting Started

Basic Setup or Prerequisites

• OS: Ubuntu 20.04 or later
• Dependencies: ROS2 or ROS1 installed
• Packages: urdf, xacro, rviz2, gazebo

Hands-on: Beginner-Friendly Setup Guide

1. Install ROS2 (Humble)

sudo apt update
sudo apt install ros-humble-desktop

2. Create a Workspace

mkdir -p ~/robot_ws/src
cd ~/robot_ws/
colcon build

3. Create a Simple URDF File
   my_robot.urdf

<robot name="simple_bot">
  <link name="base_link">
    <visual>
      <geometry>
        <box size="1 1 0.2"/>
      </geometry>
      <material name="blue"/>
    </visual>
  </link>
</robot>

4. Launch in RViz

ros2 launch urdf_tutorial display.launch.py model:=my_robot.urdf

You should now see a simple blue box robot in RViz.

---

5. Real-World Use Cases

Example 1: Mobile Robot Fleet Simulation

• URDF used to define a warehouse robot’s wheels, sensors, and manipulators.
• CI/CD ensures updates are tested in Gazebo before rollout.

Example 2: Robotic Arm in Manufacturing

• URDF describes the arm’s joints and kinematics.
• Simulations validate safety and reachability before deploying to assembly lines.

Example 3: Drone Delivery System

• URDF defines quadcopter structure, propellers, and sensors.
• Cloud-based simulations test navigation under different weather conditions.

Example 4: Healthcare Robots

• URDF models hospital-assistive robots (e.g., telepresence bots).
• Ensures safe integration of sensors (LiDAR, cameras) for navigation.

---

6. Benefits & Limitations

Key Advantages

• Standardized robot description across tools.
• Easy integration with simulators and controllers.
• Encourages simulation-first testing in RobotOps pipelines.
• Extensible with plugins for sensors/actuators.

Common Challenges or Limitations

• URDF cannot represent closed kinematic loops (e.g., parallel robots).
• Limited in expressing dynamic properties (needs SDF extension for physics).
• Large URDF files become hard to maintain → solved with xacro macros.

---

7. Best Practices & Recommendations

• Use xacro for modular, maintainable URDF files.
• Automate validation with CI/CD (linting, simulation tests).
• Version control URDF alongside robot code.
• Security Tip: Validate mesh imports to avoid malicious code injection.
• Performance: Keep meshes lightweight for fast simulation.
• Compliance: Ensure URDF-defined safety zones match ISO robotics standards.

---

8. Comparison with Alternatives

Feature	URDF	SDF (Simulation Description Format)	MJCF (MuJoCo XML)
Supported in ROS	✅ Yes	✅ Yes (via Gazebo)	❌ Limited
Physics	❌ Limited	✅ Full physics support	✅ Advanced
Kinematic Loops	❌ No	✅ Yes	✅ Yes
Readability	✅ High (simple XML)	❌ More complex	❌ Complex
Best For	RobotOps + ROS	High-fidelity simulation	AI/ML robotics research

Choose URDF if:

• You are in the ROS ecosystem.
• Need simulation + deployment consistency.
• Want simpler XML over complex physics.

---

9. Conclusion

URDF is the foundation of RobotOps pipelines. It enables reproducible, automated, and safe robot lifecycle management by serving as the standardized robot description format.

Future Trends

• Integration with Digital Twins for real-time monitoring.
• Expansion into cloud-native robotics.
• Improved conversion tools between URDF and SDF.

Next Steps

• Explore xacro for complex robots.
• Integrate URDF validation into your CI/CD pipeline.
• Join ROS and RobotOps communities for collaboration.

---
