Introduction & Overview

Cross-compilation is a cornerstone technique in robotics and RobotOps (Robotics Operations), enabling developers to build software for robotic systems that run on different hardware architectures than the development environment. This tutorial provides a detailed exploration of cross-compilation within RobotOps, covering its concepts, setup, real-world applications, benefits, limitations, and best practices. RobotOps, akin to DevOps, focuses on streamlining the development, deployment, and operation of robotic systems, often involving complex hardware and software integration.

What is Cross-Compilation?

Cross-compilation refers to the process of compiling code on one platform (the host) to generate executable code for a different platform (the target). In RobotOps, this is critical because robots often use specialized hardware, such as ARM-based processors in single-board computers (SBCs) like Raspberry Pi or NVIDIA Jetson, while developers work on x86-based systems.

  • Definition: Compiling source code on a host system to produce binaries executable on a target system with a different architecture or operating system.
  • Example: Writing and compiling code on a Linux x86_64 PC to run on an ARM-based robot controller.
  • Purpose: Enables efficient development for resource-constrained or specialized robotic hardware.

History or Background

Cross-compilation has roots in embedded systems development, dating back to the 1970s when microprocessors became prevalent. Early embedded systems, like those in industrial automation, required developers to compile code for specific hardware architectures, often using cross-compilers. The rise of Unix systems in the 1980s and tools like GCC (GNU Compiler Collection) standardized cross-compilation processes. In robotics, the advent of Robot Operating System (ROS) in 2007 and its successor ROS 2 amplified the need for cross-compilation, as robotic systems increasingly used diverse hardware platforms.

  • 1970s–1980s: Emergence of cross-compilers for microcontrollers in embedded systems.
  • 1990s: GCC and other open-source tools made cross-compilation accessible for broader platforms.
  • 2007: ROS introduced a modular framework, increasing demand for cross-compilation in robotics.
  • 2017–Present: ROS 2 and the proliferation of SBCs (e.g., Raspberry Pi, NVIDIA Jetson) solidified cross-compilation as a standard practice in RobotOps.

Why is it Relevant in RobotOps?

RobotOps involves managing the lifecycle of robotic systems, from development to deployment and maintenance. Cross-compilation is vital because:

  • Hardware Diversity: Robots use varied architectures (ARM, RISC-V, x86), requiring code to be compiled for specific targets.
  • Resource Constraints: Robotic hardware often has limited computational resources, making native compilation impractical.
  • Scalability: Cross-compilation enables rapid development and testing on powerful host machines, streamlining RobotOps workflows.
  • CI/CD Integration: Automated build pipelines in RobotOps rely on cross-compilation to deploy software to heterogeneous robotic fleets.

Core Concepts & Terminology

Key Terms and Definitions

TermDefinition
HostThe system where the code is compiled (e.g., developer’s x86_64 Linux PC).
TargetThe system where the compiled code will run (e.g., ARM-based robot).
ToolchainA set of tools (compiler, linker, assembler) configured for cross-compilation.
SysrootA directory containing libraries and headers for the target platform.
Cross-CompilerA compiler that generates code for a different architecture than the host.
ROS 2An open-source middleware suite for robotics, often requiring cross-compilation for embedded systems.
DockerA containerization tool used to isolate cross-compilation environments.

How It Fits into the RobotOps Lifecycle

Cross-compilation integrates into the RobotOps lifecycle at multiple stages:

  • Development: Developers write code on host systems and cross-compile for target robotic hardware.
  • Build: CI/CD pipelines use cross-compilation to generate binaries for multiple robot architectures.
  • Deployment: Cross-compiled binaries are deployed to robots, ensuring compatibility with target hardware.
  • Maintenance: Updates and patches are cross-compiled and deployed to maintain robotic systems in the field.

Architecture & How It Works

Components and Internal Workflow

Cross-compilation in RobotOps involves several components:

  1. Source Code: Typically written in C++, Python, or other ROS-compatible languages.
  2. Cross-Compiler Toolchain: Includes tools like arm-none-eabi-gcc for ARM targets or aarch64-linux-gnu-gcc for 64-bit ARM systems.
  3. Sysroot: Contains target-specific libraries, headers, and runtime dependencies.
  4. Build System: Tools like CMake or colcon (ROS 2 build tool) configure the build process for the target architecture.
  5. Deployment Mechanism: Tools like rsync or Docker containers transfer binaries to the target robot.

Workflow:

  1. Configure the toolchain with the target architecture (e.g., --target=arm-linux-gnueabihf).
  2. Set up the sysroot with target libraries.
  3. Compile the source code using the cross-compiler.
  4. Link the compiled objects with target-specific libraries.
  5. Package and deploy the binary to the target robot.

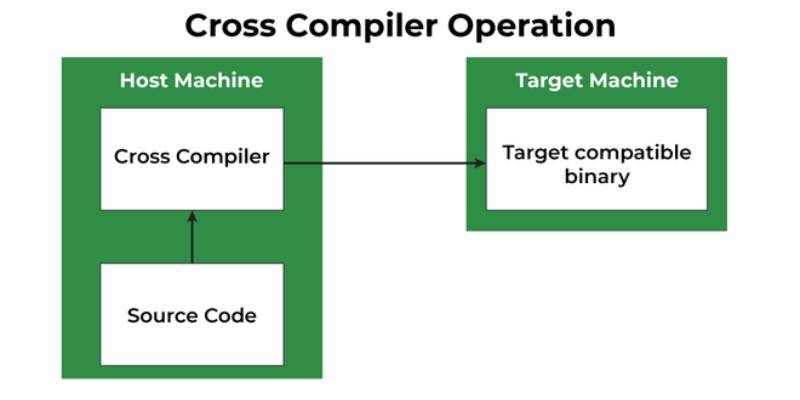

Architecture Diagram Description

The architecture diagram for cross-compilation in RobotOps illustrates the flow from development to deployment:

  • Host System: A Linux/Windows PC with development tools (IDE, Git, CMake).
  • Cross-Compilation Toolchain: GCC or Clang configured for the target (e.g., ARM).
  • Sysroot: A directory with target libraries and headers.
  • Build System: CMake or colcon generating target binaries.
  • CI/CD Pipeline: Jenkins or GitHub Actions automating cross-compilation and deployment.
  • Target Robot: The robotic system (e.g., Raspberry Pi running ROS 2) receiving the compiled binary.

Diagram (Textual Representation):

+---------------------+       +---------------------+
|   Host System       |       |    Target Robot     |
|  (x86 Laptop/CI)    |       |  (ARM/MIPS CPU)     |
|                     |       |                     |
|  Source Code        |       |  Executes Binary    |
|  Cross Compiler --->|-----> |  Robot Sensors/Act. |
|  Sysroot Libraries  |       |                     |
|  CI/CD Pipelines    |       |  ROS / Middleware   |
+---------------------+       +---------------------+

Integration Points with CI/CD or Cloud Tools

  • CI/CD: Jenkins or GitHub Actions can automate cross-compilation using Docker containers with pre-configured toolchains.
  • Cloud Tools: AWS RoboMaker or Azure IoT Hub integrate cross-compilation for deploying to cloud-connected robots.
  • Containerization: Docker isolates the cross-compilation environment, ensuring consistency across builds.

Installation & Getting Started

Basic Setup or Prerequisites

  • Host System: Linux (Ubuntu 20.04/22.04 recommended) or Windows with WSL2.
  • Toolchain: Install a cross-compiler (e.g., gcc-arm-linux-gnueabihf for ARM).
  • ROS 2: Install ROS 2 (e.g., Humble or Iron) on the host for development.
  • Docker: Optional for isolated build environments.
  • Target Device: An ARM-based SBC like Raspberry Pi 4 with Ubuntu or Raspberry Pi OS.

Hands-On: Step-by-Step Beginner-Friendly Setup Guide

  1. Install ROS 2 on Host:
sudo apt update
sudo apt install -y software-properties-common
sudo add-apt-repository universe
sudo apt install -y ros-humble-desktop
source /opt/ros/humble/setup.bash

2. Install Cross-Compiler Toolchain:

sudo apt install -y gcc-arm-linux-gnueabihf g++-arm-linux-gnueabihf

3. Set Up Sysroot:
Create a sysroot directory and copy target libraries (e.g., from Raspberry Pi):

mkdir ~/sysroot
scp -r pi@raspberrypi:/usr/lib ~/sysroot/usr/lib
scp -r pi@raspberrypi:/usr/include ~/sysroot/usr/include

4. Configure CMake for Cross-Compilation:
Create a toolchain.cmake file:

set(CMAKE_SYSTEM_NAME Linux)
set(CMAKE_SYSTEM_PROCESSOR arm)
set(CMAKE_C_COMPILER arm-linux-gnueabihf-gcc)
set(CMAKE_CXX_COMPILER arm-linux-gnueabihf-g++)
set(CMAKE_FIND_ROOT_PATH ~/sysroot)
set(CMAKE_FIND_ROOT_PATH_MODE_PROGRAM NEVER)
set(CMAKE_FIND_ROOT_PATH_MODE_LIBRARY ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_INCLUDE ONLY)

5. Build a ROS 2 Package:

mkdir -p ~/ros2_ws/src
cd ~/ros2_ws/src
ros2 pkg create --build-type ament_cmake my_package
cd ~/ros2_ws
colcon build --cmake-args -DCMAKE_TOOLCHAIN_FILE=~/toolchain.cmake

6. Deploy to Target:

scp ~/ros2_ws/install/my_package pi@raspberrypi:/home/pi/ros2_ws/install/

    Real-World Use Cases

    1. Autonomous Vacuum Cleaner:
      • Scenario: A vacuum cleaning robot uses a Raspberry Pi (ARM) to process sensor data and navigate. Developers cross-compile ROS 2 nodes on a Linux PC to generate binaries for the Pi.
      • Implementation: Sensor fusion nodes (e.g., for LiDAR and cameras) are cross-compiled using colcon and deployed to the robot for real-time navigation.
    2. Industrial Robotic Arm:
      • Scenario: A robotic arm in a factory uses an ARM-based controller. Cross-compilation enables developers to build MoveIt! motion planning nodes on a host system.
      • Implementation: The ros_control package is cross-compiled to control the arm’s servos, ensuring precise manipulation.
    3. Autonomous Drone:
      • Scenario: A drone with an NVIDIA Jetson Nano requires cross-compiled SLAM (Simultaneous Localization and Mapping) nodes for navigation.
      • Implementation: The cartographer package is cross-compiled using a Docker container and deployed to the Jetson for real-time mapping.
    4. Healthcare Robot:
      • Scenario: A hospital delivery robot uses ROS 2 on a BeagleBone Black. Cross-compilation ensures efficient development of navigation and voice command nodes.
      • Implementation: Voice command nodes are cross-compiled and integrated with the robot’s speech recognition system.

    Benefits & Limitations

    Key Advantages

    • Efficiency: Compiling on a powerful host reduces build time compared to native compilation on resource-constrained robots.
    • Flexibility: Supports diverse hardware architectures, enabling RobotOps for various robotic platforms.
    • Scalability: Integrates with CI/CD pipelines for automated builds across multiple robot types.
    • Cost-Effective: Eliminates the need for high-performance hardware on the target robot.

    Common Challenges or Limitations

    • Dependency Management: Ensuring all libraries are available in the sysroot can be complex.
    • Debugging: Debugging cross-compiled code requires emulators like QEMU or actual hardware testing.
    • Toolchain Setup: Configuring toolchains for specific targets can be error-prone.
    • Performance Overhead: Cross-compiled binaries may require optimization for the target’s specific hardware.

    Best Practices & Recommendations

    • Use Docker: Isolate cross-compilation environments to avoid dependency conflicts.docker pull arm64v8/ros:humble docker run -v $(pwd):/ws -it arm64v8/ros:humble
    • Static Linking: Prefer static linking to reduce runtime dependency issues.
    • Version Control: Use Git to manage sysroot and toolchain configurations.
    • Testing: Use emulators (e.g., QEMU) for initial testing, followed by hardware validation.
    • Security: Ensure sysroot libraries are up-to-date to avoid vulnerabilities.
    • Compliance: Align with ROS 2 security guidelines for secure communication in robotic systems.
    • Automation: Integrate cross-compilation into CI/CD pipelines using tools like Jenkins or GitHub Actions.

    Comparison with Alternatives

    FeatureCross-CompilationNative CompilationCloud-Based Compilation
    SpeedFast on powerful hostSlow on resource-constrained robotsFast but requires cloud access
    FlexibilitySupports diverse architecturesLimited to target hardwareLimited by cloud platform support
    Dependency ManagementComplex sysroot setupSimpler but resource-heavyManaged by cloud provider
    CostLow (uses existing hardware)High (requires powerful target)Subscription-based
    Use CaseRobotOps with diverse hardwareSimple robots with sufficient resourcesCloud-integrated robots

    When to Choose Cross-Compilation:

    • When developing for resource-constrained or specialized robotic hardware.
    • When integrating with CI/CD pipelines for scalable RobotOps.
    • When targeting multiple hardware architectures simultaneously.

    Conclusion

    Cross-compilation is a pivotal technique in RobotOps, enabling efficient development and deployment of robotic software across diverse hardware platforms. By leveraging powerful host systems, developers can streamline the RobotOps lifecycle, from coding to deployment. Despite challenges like dependency management, best practices such as Docker-based builds and CI/CD integration mitigate these issues. As robotics continues to evolve, cross-compilation will remain essential, especially with the growing adoption of ROS 2 and heterogeneous robotic systems.

    Future Trends:

    • AI Integration: Cross-compilation for AI-enabled robots with specialized hardware (e.g., TPUs).
    • Edge Computing: Increased use in edge devices for real-time robotic applications.
    • Automated Toolchains: Tools like Zig simplify cross-compilation processes.

    Resources:

    • Official ROS 2 Documentation: ros.org
    • GCC Cross-Compilation Guide: gcc.gnu.org
    • ROS Community: discourse.ros.org
